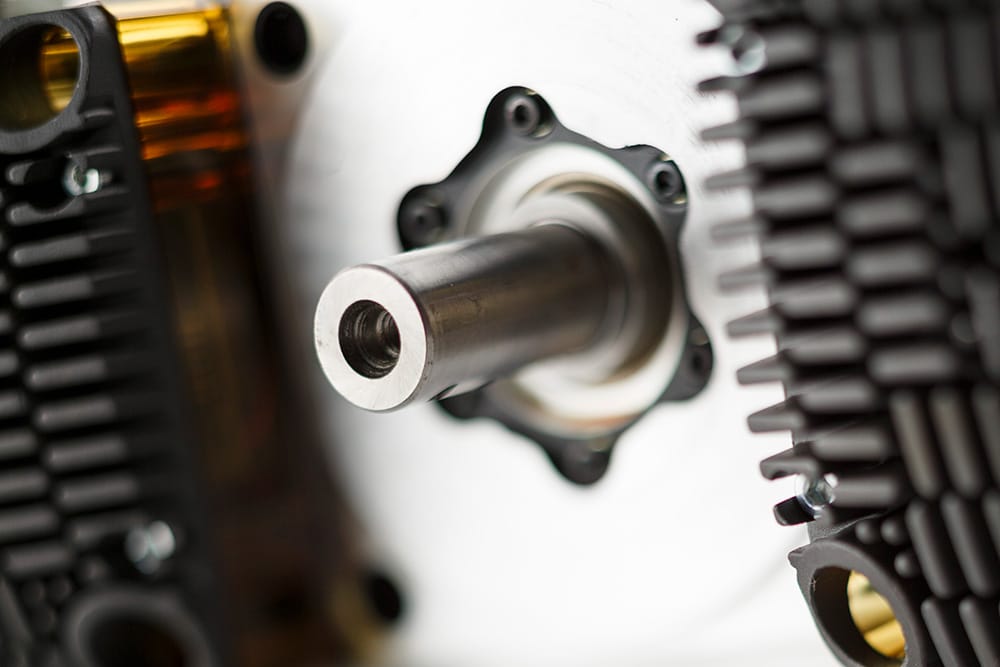

TorqueWire® TWX integrated servo motors are self-sufficient units for easy multi-axis system integration with minimal hardware
Compact Design and Seamless Integration
The TWX series features rare-earth brushless servo motors with a DSP-based, high-voltage servo drive and a single- or multi-turn absolute encoder. As a result, it ensures both precision and reliability.
Moreover, the compact IP65 frame eliminates external cables and junctions. This not only simplifies installation but also reduces failure points and improves durability.
Additionally, these self-sufficient servo modules are designed for multi-axis systems. They effectively minimize hardware needs while maintaining flexibility and ease of use.
Optimized Performance and Extended Durability
Performance excels through the advanced co-design of motor and drive. Specifically, optimized windings, new magnetic materials, and a unique winding technique make the motor 60% smaller than standard designs. Thus, users gain compactness without sacrificing power.
Furthermore, innovative EMC solutions improve resistance to vibrations and temperature changes. The absence of electrolytic capacitors also extends operational life, ensuring reliability even under extreme conditions.
Rated torque: 3.7 Nm / 6.4 Nm
Rated speed: 4000 rpm / 3000 rpm
Supply Voltage: 310 – 600 Vdc
Shaft Power: 645 W / 1142 W
Communication: Can/EtherCat standard protocols
Commissioning: Windows Tool with USB connection
Safety Function: STO SIL2/SIL3
Brake: optional +24V brake
Feedback devices:
- Endat Heidenhain Absolute Encoder single or multi-turn ( 180 arcsec accuracy )
- Two pole resolver
